Màn hình ghép 65inches Hatek HT6535LVW

Specification

Type

Parameters

Panel

LCD size

65"

Panel grade

Grade A

Light source

LED backlight

Resolution

3840 x 2160pixels

Brightness

500cd/m²(typ.)

Contrast ration

1400:1(typ.)

Pixel pitch

0.372×0.372 mm

Frequency

60Hz

Viewing angle

178°(H)/178°(V)

Response time

8ms

Life span

50,000hrs(min.)

Color saturability

72%

Display area

1428.48(H)mm x 803.52(V)mm

Display colors

16.7M

Program

Scalar

720S

Power

Power

100~240V,50~60Hz

Maximum power consumption

＜240W

Standby power consumption

＜0.5W

Environment

Working temperature

0℃～50℃

Storage temperature

-20℃～60℃

Working humidity

10%～90%RH Non-condensing

Storage  humidity

20%～85%RH Non-condensing

Display mode

Standard、soft、User、Beautiful

Normal use time

24 hours

Input Interface

USB IN

1

HDMI IN

1

DVI IN

1

VGA IN

1

BNC IN

1

RS232 IN

1

Output Interface

RS232 OUT

2

VBYONE

1

Structure

Net weight

27.7±1kg

Gross weight

60.6±1kg(two in one)

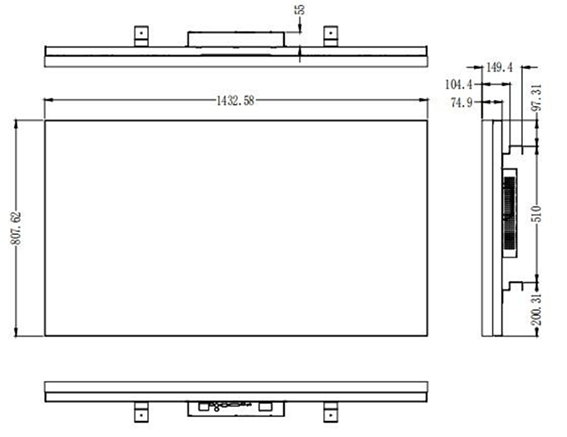

Bare dimension

1432.58 x 807.62 x 74.96 mm

Packing dimension

TBD

Shell material

Metal

Shell color

Black

Bezel

        3.5mm

Wall Bracing

4-M6 screws 580 x 460mm

Language

OSD

En/CH

Accessory

Remoter

1

Power cord

1

RS232 signal cable ( network cable)

1

RJ45 to RS232 interface socket

1

Quick guide

1

Warranty card

1

Function

Support 8 bits dual LVDS UHD display

Using 3-D digital comb filter

True color OSD, humanized operation menu

Adopt MSTAR ace-5 automatic color and image enhancement engine to improve image contrast ratio, detail, skin color, edge, etc.

Complete factory set-up mode

With 3-D noise reduction technology

Comes with splicing software, supports splicing into large screens

Support USB2.0 software upgrade

Using programmable 12 bit RGB gamma correction technology
