Màn hình quảng cáo di động HATEK HT3225S

Display

Size

32“

Response Time

8ms

Aspect Ratio

16:9

Resolution

1920（H）×1080（V）

Display Color

1.07B (10bit)

NTSC(Typ)

72%

Contrast Ratio(Typ)

1200:1

Viewing Angle

R/L 89/89, U/D 89/89

Back Light  Unit

ELED

Brightness with glass(typ)

300cd/m2

Life Time

≥30000 hrs

Audio

Sound Channel

2.0

Speaker Power

2×5W

Touch System

Sensing Type

Capacitive Touch

Touch Interface

HID-USB

Touch Point

10 points touch

Integrated System

Chip solution

RK3576S

OS version

Android 14.0

CPU

Quad-core Cortex-A53 + Quad-core Cortex-A72

GPU

G52 MC3

RAM

8GB

ROM

128GB

OSD

Multi-language OSD Operation

Bluetooth

Version

5.3

Operating frequency

2.4GHz&5GHz

Operating distance

0~10m

Clarification

built-in bluetooth

Wi-Fi

Version

5.3

Operating frequency

2.4GHz&5GHz

Operating distance

0~10m

Clarification

built-in bluetooth

Onboard Interface

USB

1 （USB 2.0 Host）

USB

1 （USB 3.0 Host）

Type_C

1 （Supports ADB Only）

HDMI IN

1

DC IN

DC Power Input

Power

Power Requirements

21700 type lithium-ion battery

Battery Capacity

14.6V/15000mAh

Battery Duration

≈6-8H

Power Requirements

18V/5A

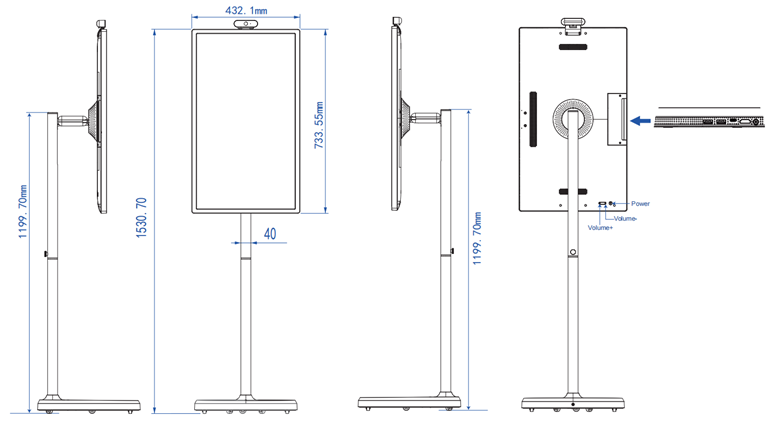

Structural Function

Tilt (forward-backward)

-20∘ ~ 20°  ±3°

Deflection (left/right)

-15∘ ~ 15°  ±3°

Rotate (clockwise)

Supports 90°

Lift (up-down)

140mm

Other Configurations

Product colour

White/Black

VESA

100x100mm

Button

Power/Volume Up/Volume Down

Gravity sensor

Supports 90°

Microphone

Comes standard with dual microphones, supports noise reduction and echo cancellation

Camera

External USB camera (portrait mode, 8 megapixels)

Certification

CCC/CE/FCC

Physical Specification

Dimension(package)L × W × H

880×570×220 mm

Net Weight

21.5+/-1Kg

Gross Weight

22.5+/-1Kg

Accessories

Adapter

×1

AC Power Cord

×1（L=1.5m）

lid

×1

Screwdriver

×1

Manual

×1

USB cable

*1

Equipment Feet

*5

Remote control

*1(Bluetooth voice version)

Environmental Condition

Operation Temperature

0℃~40℃

Operation Humidity

20~80%RH

Storage Temperature

-20℃---60℃

Storage Humidity

10~95%RH

Altitude

< 5000m
